CombiMULTIPURPOSE SEAT US13

BACK

Offering you a clean, convenient space for your changing needs. Put your washroom troubles behind you!

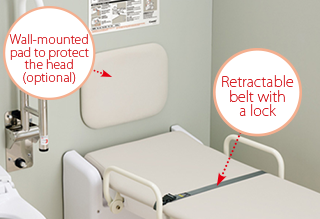

  • Wall-mounted pad to
    protect the head (optional)
  • Hand rails that open
    with one touch
  • Retractable belt
    with a buckle
  • The 48cm-high seat is easy
    to slide into from a wheelchair.

The MULTIPURPOSE SEAT is a care seat for multi-functional washroom stalls. Its retractable design allows space for a wheelchair to move around while providing great convenience for users to change clothes or diapers.

Features

  • Opens and closes with little force (30N [3kgf]).
  • Opens and closes softly with a unique damping mechanism.
  • Opens and closes with little physical strength (30N [3kgf]).
  • By leaning against the hand rails and walls, wheelchair users can also comfortably use the seat alone.
  • Both left and right rails open and close.
  • The wide seat surface is padded with a soft cushion for your comfort.
  • Retractable belt with a buckle
    *The belt is used for ADULTS only. It is NOT suitable for CHILDREN.
  • Instructions in 4 languages (Japanese, English, Chinese and Korean)

SPEC

Product Name Combi MULTIPURPOSE SEAT US13
Item Number US-13
Product Color CLEAR WHITE
External Dimension (mm) [When closed] W738×D240×H1,538
[When opened] W738×D1,285×H583
Weight (kg) 35.0
Material Body: Steel (rust-proof), ABS resin
Cushion: Urethane foam
Lining: Synthetic leather
Installation Instructions Secure it to the floor with anchor bolts etc.

Anchor bolts not included. Please purchase separately.
  • * Product specifications are subject to change without notice.
  • * Product color may differ from the actual product depending on monitor settings.
